TLS-02 Model 3/3 Highland 18"-20" Monoblock Custom Forged Wheels | Tlyard®

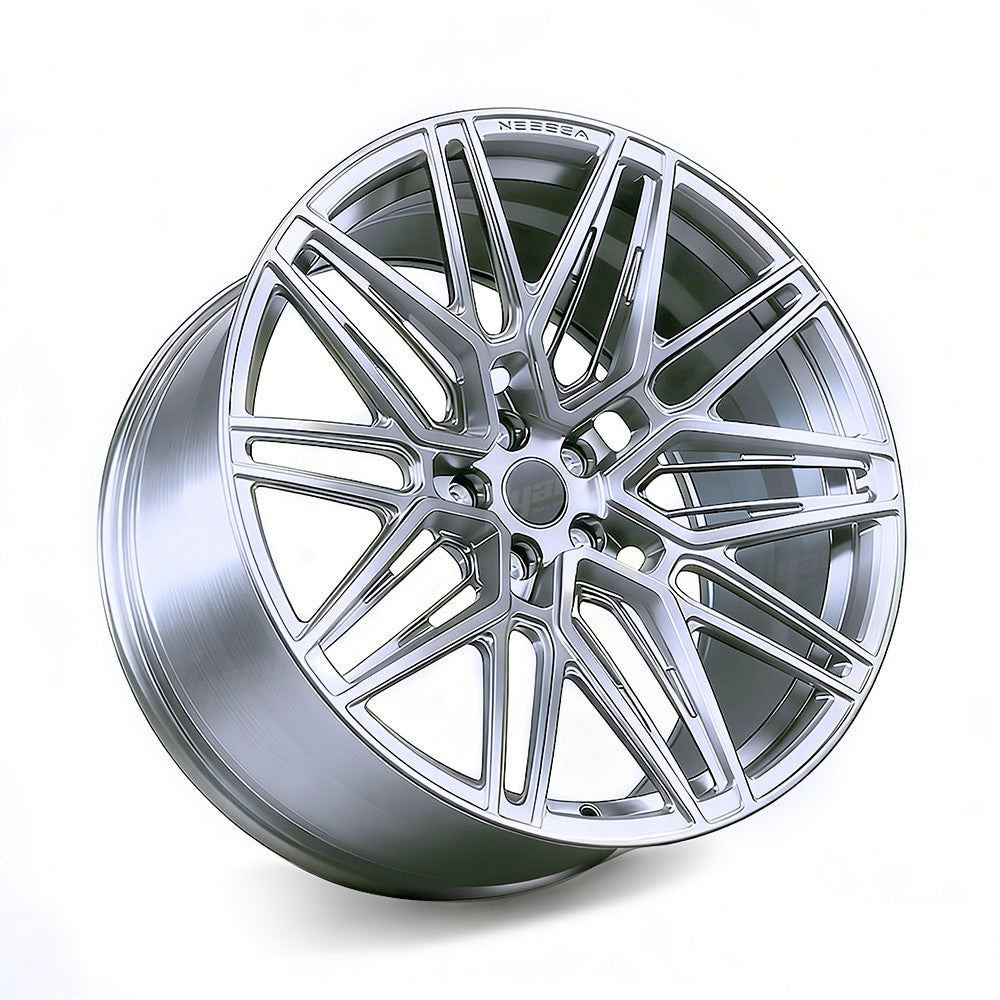

Unleash the full potential of your Tesla Model 3 or the  Model 3 Highland (2023.10+) with the Tlyard® TLS-02, a high-performance Monoblock Monoblock Forged wheel engineered for the discerning enthusiast. Inspired by the striking HF-7 mesh architecture, this wheel is designed to deliver a dramatic visual upgrade, transforming your sedan’s side profile with its intricate geometric Y-spoke pattern.

Technical Specifications

Series Name	Tlyard® TLS-02
Construction	One-Piece (Monoblock) Forged
Material	6061-T6 Aerospace Aluminum Alloy
Vehicle Fitment	Tesla Model 3 & Model 3 Highland (All Variants)
Wheel Diameter	18″ / 19″ / 20″ (Customizable)
PCD (Bolt Pattern)	5×114.3
Center Bore (CB)	64.1 mm
Lug Nut Spec	M14×1.5
Finish Options	Gloss Black/Satin Gunmetal/Antique Bronze(Customizable)
Load Rating	900 kg/1984 lbs per wheel (Safety Certified)



HF-7 Inspired Mesh Architecture
A sophisticated, geometric Y-spoke design that adds a complex, racing-inspired visual layer, perfectly complementing the sleek lines of the Highland refresh.

Ultra-Lightweight Monoblock Forging
Precision-crafted from a single piece of premium 6061-T6 aluminum, offering superior structural integrity and a much higher strength-to-weight ratio than cast or rotary-formed wheels.

Performance & Range Efficiency (Wh/mi)
The reduction in unsprung weight and rotational inertia directly translates into more responsive acceleration, improved braking precision, and optimized energy efficiency for daily driving.

Superior Brake Cooling & Ventilation
The open mesh structure maximizes airflow to the braking system, ensuring consistent stopping power and performance even during spirited driving sessions.

Detailed Size & Weight Matrix

Size	Width & Offset	Tire Recommendation	Estimated Weight (per piece)
18"	18x8.5" ET+35	235/45-18	~11.5 kg (25.4 lbs)
19"	19x8.5" ET+35	235/40-19	~12.75 kg (28.1 lbs)
20"	20x9.0" ET+35	235/35-20	~13.5 kg (29.8 lbs)



Frequently Asked Questions (FAQ)

Q1: What are the shipping options and delivery times?

Shipping Method & Cost	Destination	Estimated Time
Standard Sea Shipping (FREE)	Global	Approximately 30-35 days
Expedited Air Freight ($500 USD)	Global	Approximately 15 days after production is complete



Q2: How long does the custom production take?

Each Tlyard Forged wheel is custom-forged and precision CNC-machined to your exact specifications.The standard production lead time is approximately 20-30 days, depending on the complexity of the design and specific finish requirements.

Q3: How much weight will I save by upgrading to Tlyard Forged wheels?

• For the same size and style, forged wheels are typically about 10%–25% lighter than cast wheels.

Q4: Are forged wheels stronger than the original factory wheels?

• Yes, forged wheels offer superior durability.
• While most factory wheels are cast for mass production, our forging process creates a much denser and more refined metal structure.
• This results in significantly higher structural strength and impact resistance.

Q5: Do I need to buy new tires?

• If you choose the same diameter as your original wheels (e.g., 19" to 19"), you can reuse your existing tires.
• If you upgrade to a larger diameter (e.g., upgrading from 19" to 20" or 21"), you will need to purchase new tires matching the updated specifications.

Q6: Can I customize the style, size, or color?

• Absolutely, we offer comprehensive customization services.
• Our professional team[service@tlyard.com] will work closely with you to ensure the final product matches your exact preferences for your Tesla.
