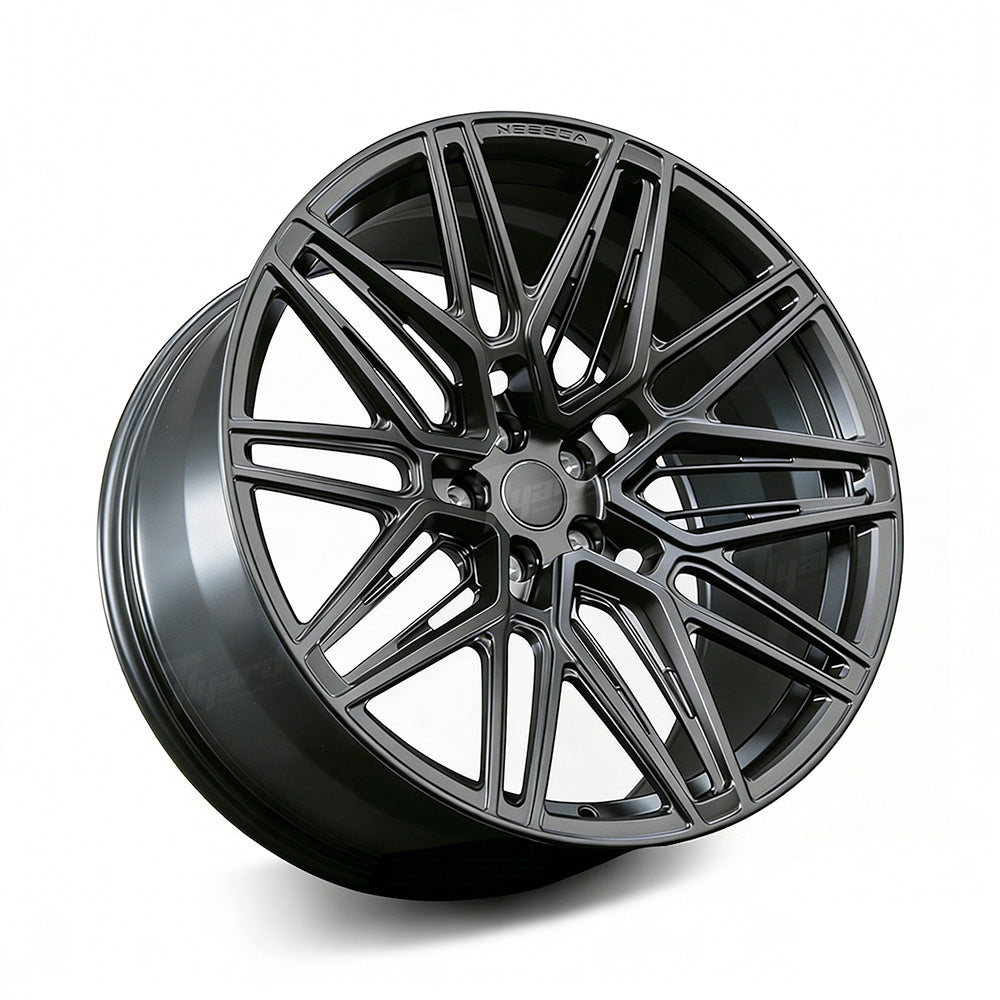

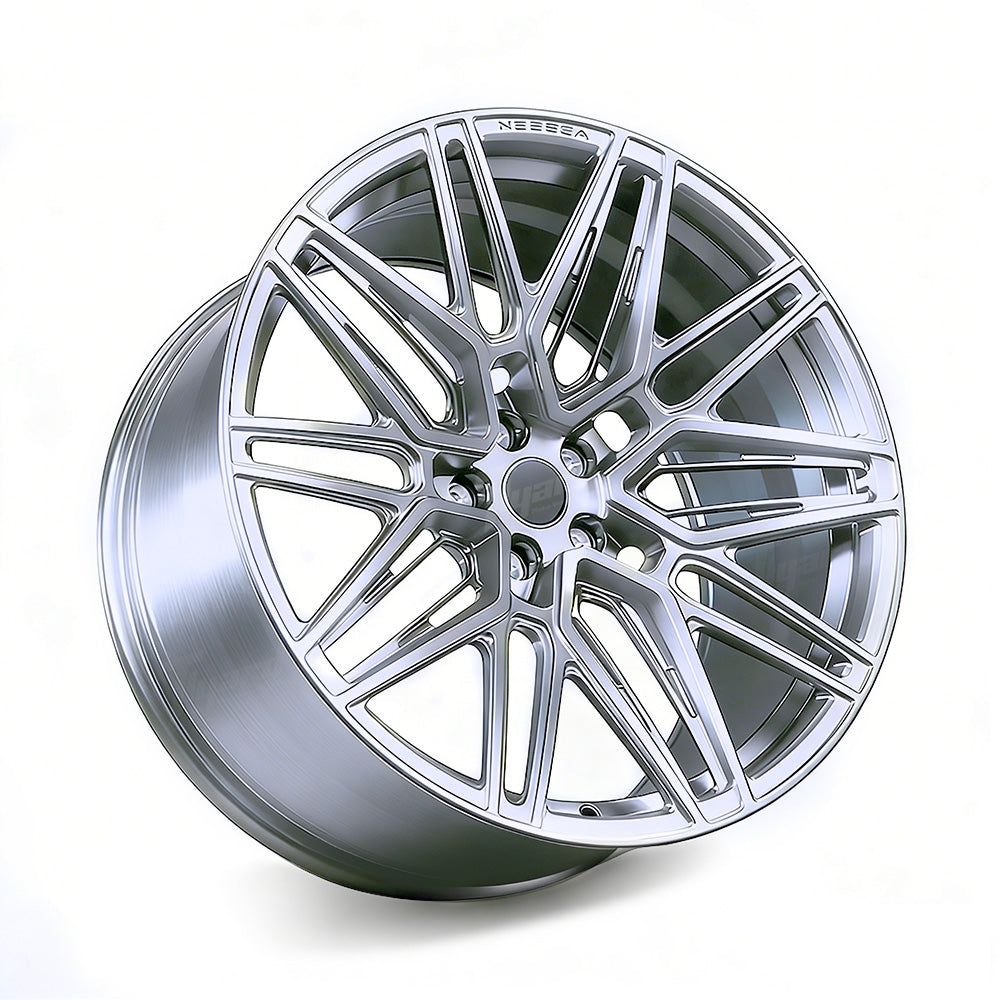

TLS-02 Model X/S 19"-22" Monoblock Custom Forged Wheels | Tlyard®

Elevate the presence of your Tesla Model S or Model X with the Tlyard® TLS-02, a premium Monoblock Custom Forged wheel engineered for the ultimate flagship experience. Inspired by the aggressive HF-7 mesh architecture, the TLS-02 features an intricate geometric Y-spoke pattern that adds a sophisticated, high-performance visual layer to your Tesla’s silhouette.

Technical Specifications

Series Name	Tlyard®
lConstruction	One-Piece (Monoblock) Forged
Material	6061-T6 Aerospace Aluminum Alloy
Vehicle Fitment	Tesla Model X/ Model X Plaid/ Model S/ Model S Plaid
Wheel Diameter	19″ / 20″/ 21" / 22" (Customizable)
PCD (Bolt Pattern)	5×120
Center Bore (CB)	64.1 mm
Lug Nut Spec	M14×1.5
Finish Options	Satin Black / Space Gray / Gloss Black (Customizable)
Load Rating	950kg+/ 2,100 lbs



Intricate HF-7 Inspired Mesh Aesthetics
A sophisticated, multi-layered geometric design that creates a striking 3D visual effect, perfectly complementing the premium luxury of the Model S and Model X.

Ultra-Strong Monoblock Forged Construction
Machined from a single piece of 6061-T6 aluminum to provide the extreme load rating required for heavy-duty electric SUVs and high-torque Plaid acceleration.

Performance & Efficiency Driven
The lightweight monoblock design reduces rotational inertia, resulting in more responsive acceleration, improved braking precision, and optimized battery range (Wh/mi).

Superior Brake Ventilation & Heat Dissipation
The open mesh structure allows for maximum airflow to the braking system, ensuring consistent performance during spirited driving or heavy mountain descents.

Detailed Size & Weight Matrix

Size	Width & Offset	Tire Recommendation	Estimated Weight (per piece)
19"	19x8.5" ET+35	245/45-19 (S) / 265/50-19 (X)	~12.75 kg (28.1 lbs)
20"	20x9.0" ET+35	245/40-20 (S) / 265/45-20 (X)	~13.5 kg (29.8 lbs)
21"	21x9.5" / 21x10.5" (Staggered)	265/35-21 (F) / 295/30-21 (R)	~14.0 kg (30.9 lbs)
22"	22x9.5" / 22x10.5" (Staggered)	265/35-22 (F) / 285/35-22 (R)	~15.2 kg (33.5 lbs)
23"	23x10.5" / 23x11.0" (Wide)	285/30-23 (F) / 305/30-23 (R)	~16.8 kg (37.0 lbs)



Frequently Asked Questions (FAQ)

Q1: What are the shipping options and delivery times?

Shipping Method & Cost	Destination	Estimated Time
Standard Sea Shipping (FREE)	Global	Approximately 30-35 days
Expedited Air Freight ($500 USD)	Global	Approximately 15 days after production is complete



Q2: How long does the custom production take?

Each Tlyard Forged wheel is custom-forged and precision CNC-machined to your exact specifications.The standard production lead time is approximately 20-30 days, depending on the complexity of the design and specific finish requirements.

Q3: How much weight will I save by upgrading to Tlyard Forged wheels?

• For the same size and style, forged wheels are typically about 10%–25% lighter than cast wheels.

Q4: Are forged wheels stronger than the original factory wheels?

• Yes, forged wheels offer superior durability.
• While most factory wheels are cast for mass production, our forging process creates a much denser and more refined metal structure.
• This results in significantly higher structural strength and impact resistance.

Q5: Do I need to buy new tires?

• If you choose the same diameter as your original wheels (e.g., 19" to 19"), you can reuse your existing tires.
• If you upgrade to a larger diameter (e.g., upgrading from 19" to 20" or 21"), you will need to purchase new tires matching the updated specifications.

Q6: Can I customize the style, size, or color?

• Absolutely, we offer comprehensive customization services.
• Our professional team[service@tlyard.com] will work closely with you to ensure the final product matches your exact preferences for your Tesla.
