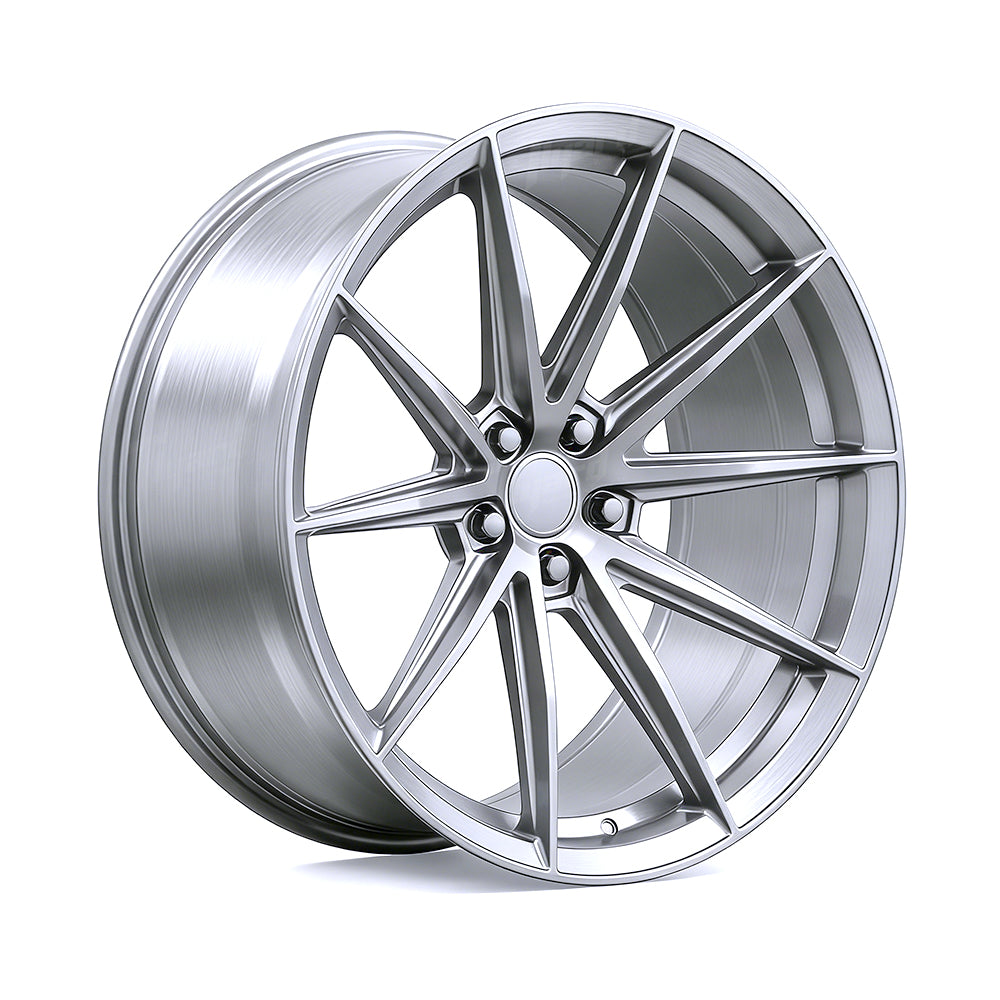

TLF-01 Model X/S 19"-22" Flow-Style Custom Forged Wheels | Tlyard®

Command the road with the Tlyard® TLF-01, an elite flow-style custom forged wheel designed for the flagship Tesla Model S and Model X. Inspired by the world-class V-Spec Y-spoke aesthetic, these wheels feature a dramatic deep concave profile that adds a sophisticated, aggressive stance to Tesla’s luxury sedan and SUV.

Whether you are looking for a sleek 19" efficiency setup or a commanding 22" staggered fitment, the TLF-01 delivers the perfect balance of supercar styling and high-performance durability.

Technical Specifications

Series Name	Tlyard® TLF-01
lConstruction	One-Piece (Monoblock) Forged
Material	6061-T6 Aerospace Aluminum Alloy
Vehicle Fitment	Tesla Model X/ Model X Plaid/ Model S/ Model S Plaid
Wheel Diameter	19″ / 20″/ 21" / 22" (Customizable)
PCD (Bolt Pattern)	5×120
Center Bore (CB)	64.1 mm
Lug Nut Spec	M14×1.5

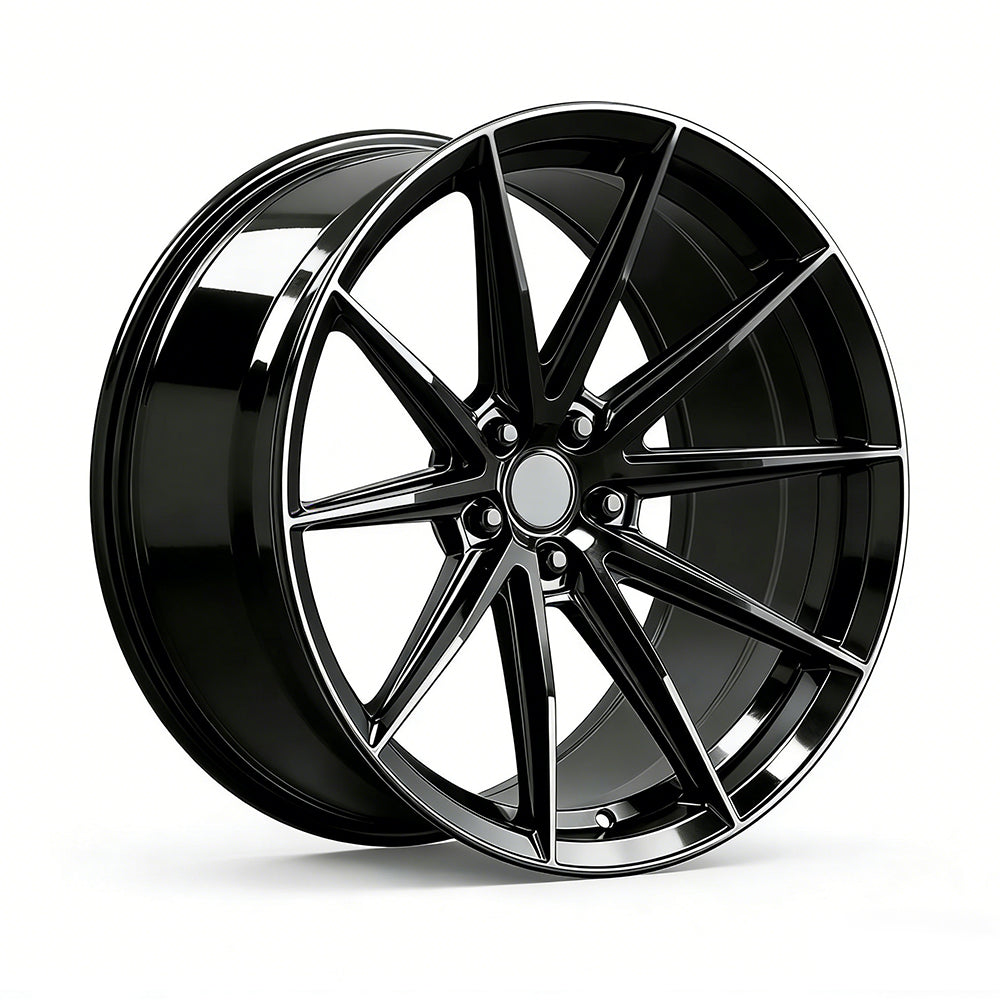

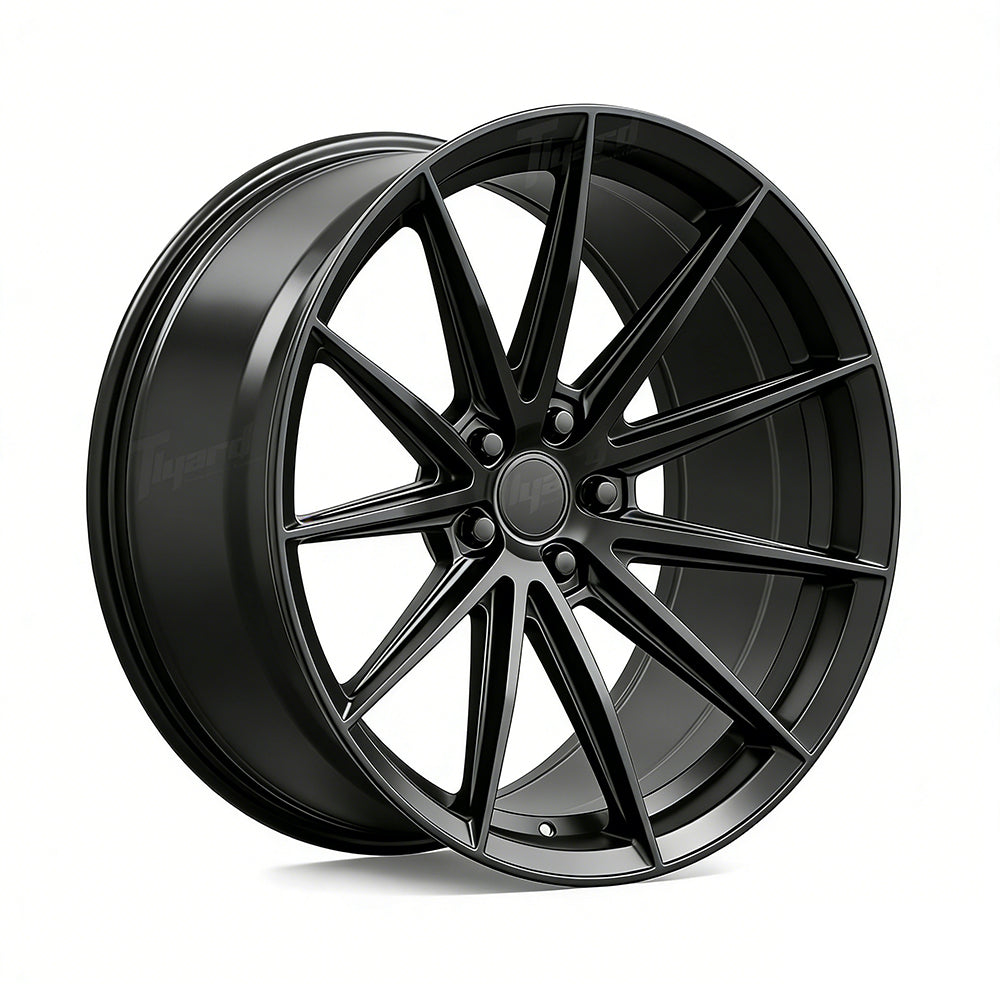

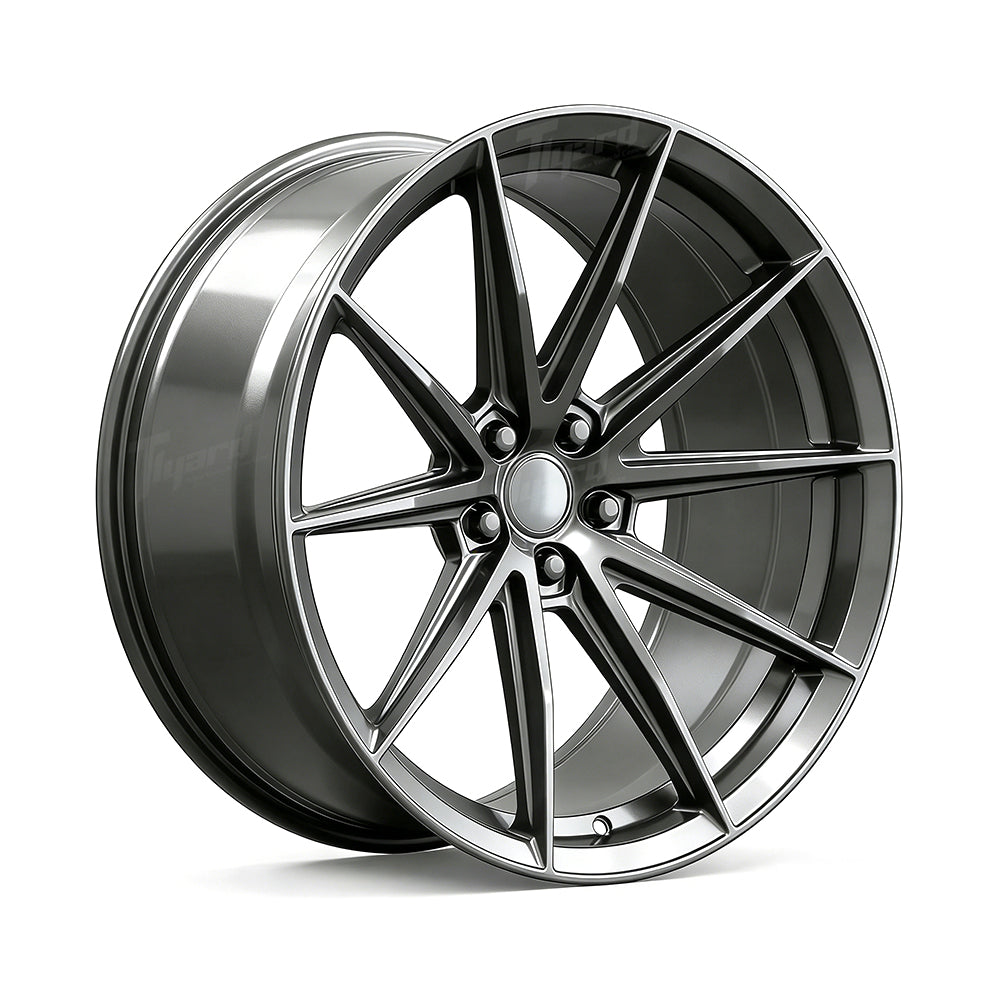

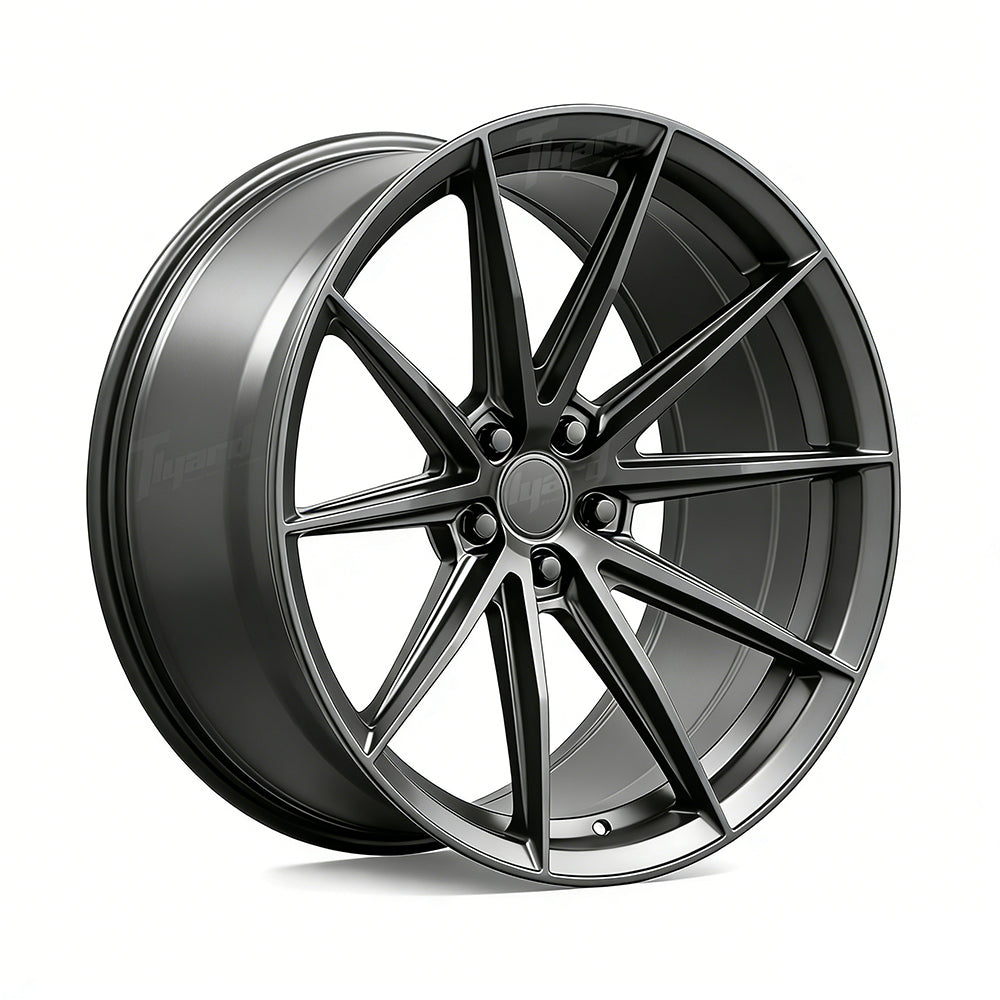

Finish Options	Satin Black / Space Gray / Gloss Black (Customizable)
Load Rating	950kg+/ 2,100 lbs



High-Performance V-Spec Aesthetic
Features the iconic flowing Y-spoke architecture that provides a modern, exotic supercar look, perfectly complementing the premium silhouettes of the Model S and Model X.

Aggressive Deep Concave Architecture
Engineered with a deep inward curvature from the outer rim to the hub, providing a striking visual depth and a wide, grounded stance that factory wheels can't match.

Heavy-Duty 6061-T6 Forged Construction
Monoblock forged from aerospace-grade aluminum to ensure maximum structural integrity. These wheels are specifically built to support the high curb weight and extreme torque of the Model X and Model S Plaid.

Enhanced Handling & Power Delivery
The lightweight forged design reduces rotational mass, resulting in sharper steering response, improved braking performance, and more efficient power delivery to the ground.

Detailed Size & Weight Matrix

Size	Width & Offset	Tire Recommendation	Estimated Weight (per piece)
19"	19x8.5" ET+35	245/45-19 (S) / 265/50-19 (X)	~12.75 kg (28.1 lbs)
20"	20x9.0" ET+35	245/40-20 (S) / 265/45-20 (X)	~13.5 kg (29.8 lbs)
21"	21x9.5" / 21x10.5" (Staggered)	265/35-21 (F) / 295/30-21 (R)	~14.0 kg (30.9 lbs)
22"	22x9.5" / 22x10.5" (Staggered)	265/35-22 (F) / 285/35-22 (R)	~15.2 kg (33.5 lbs)
23"	23x10.5" / 23x11.0" (Wide)	285/30-23 (F) / 305/30-23 (R)	~16.8 kg (37.0 lbs)



Frequently Asked Questions (FAQ)

Q1: What are the shipping options and delivery times?

Shipping Method & Cost	Destination	Estimated Time
Standard Sea Shipping (FREE)	Global	Approximately 30-35 days
Expedited Air Freight ($500 USD)	Global	Approximately 15 days after production is complete



Q2: How long does the custom production take?

Each Tlyard Forged wheel is custom-forged and precision CNC-machined to your exact specifications.The standard production lead time is approximately 20-30 days, depending on the complexity of the design and specific finish requirements.

Q3: How much weight will I save by upgrading to Tlyard Forged wheels?

• For the same size and style, forged wheels are typically about 10%–25% lighter than cast wheels.

Q4: Are forged wheels stronger than the original factory wheels?

• Yes, forged wheels offer superior durability.
• While most factory wheels are cast for mass production, our forging process creates a much denser and more refined metal structure.
• This results in significantly higher structural strength and impact resistance.

Q5: Do I need to buy new tires?

• If you choose the same diameter as your original wheels (e.g., 19" to 19"), you can reuse your existing tires.
• If you upgrade to a larger diameter (e.g., upgrading from 19" to 20" or 21"), you will need to purchase new tires matching the updated specifications.

Q6: Can I customize the style, size, or color?

• Absolutely, we offer comprehensive customization services.
• Our professional team[service@tlyard.com] will work closely with you to ensure the final product matches your exact preferences for your Tesla.
