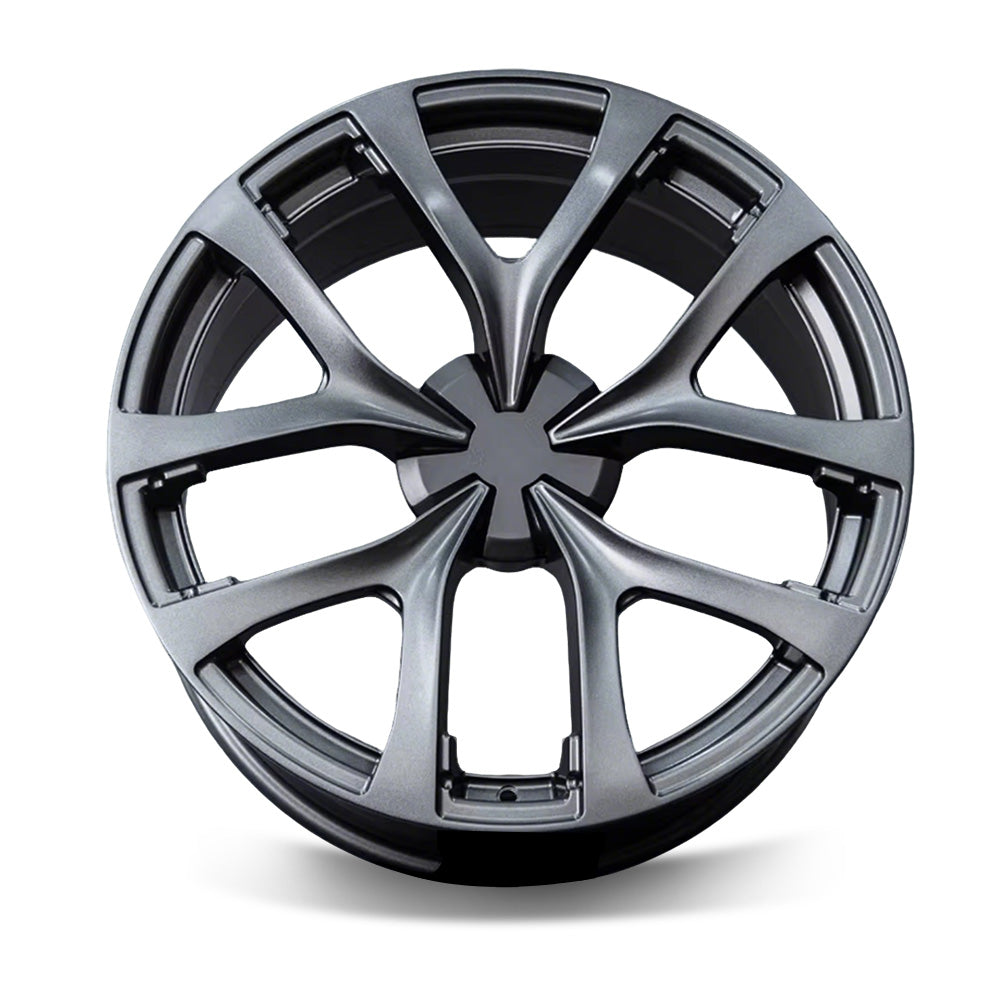

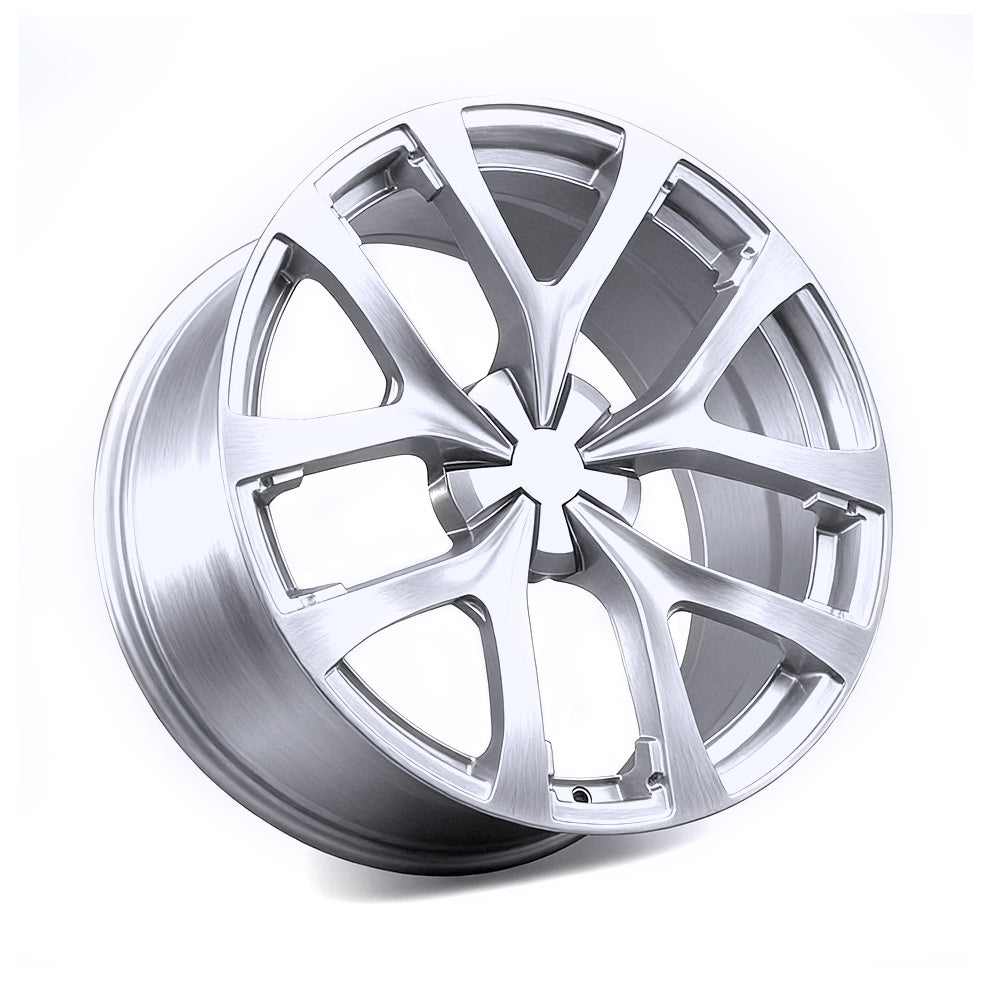

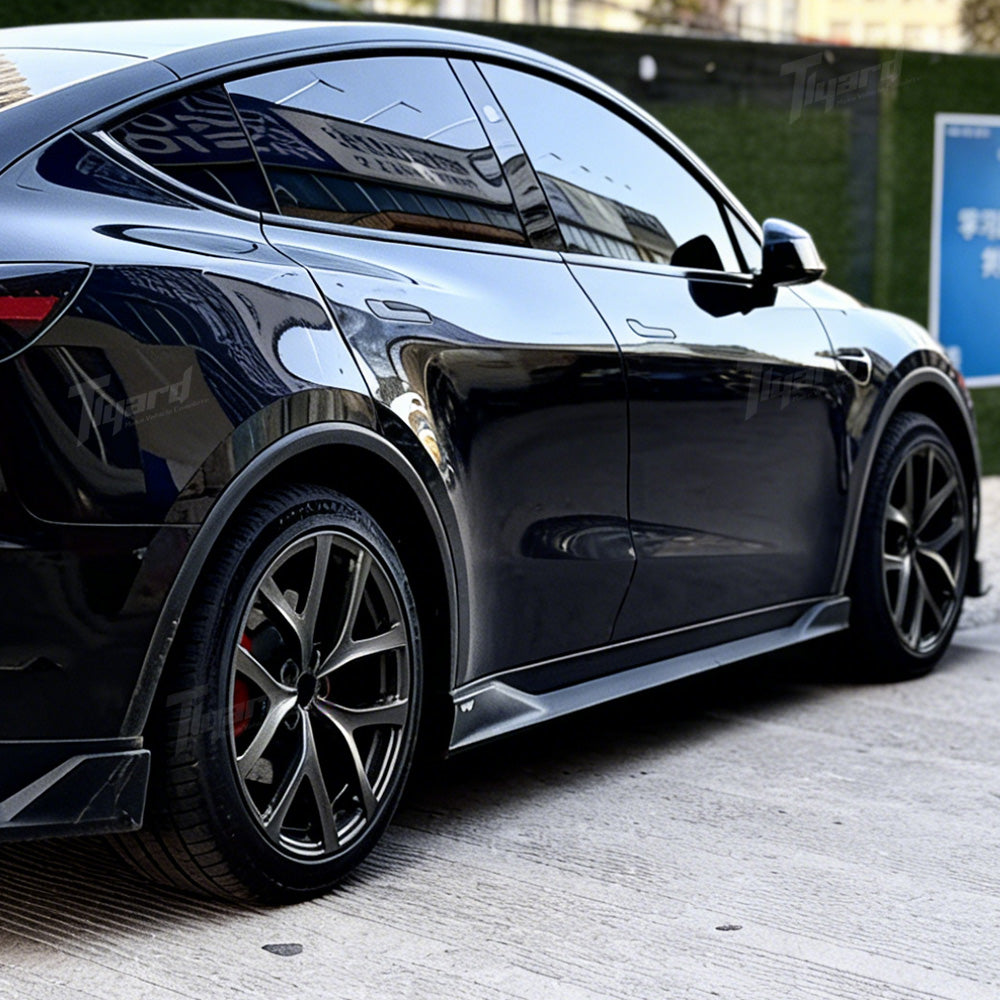

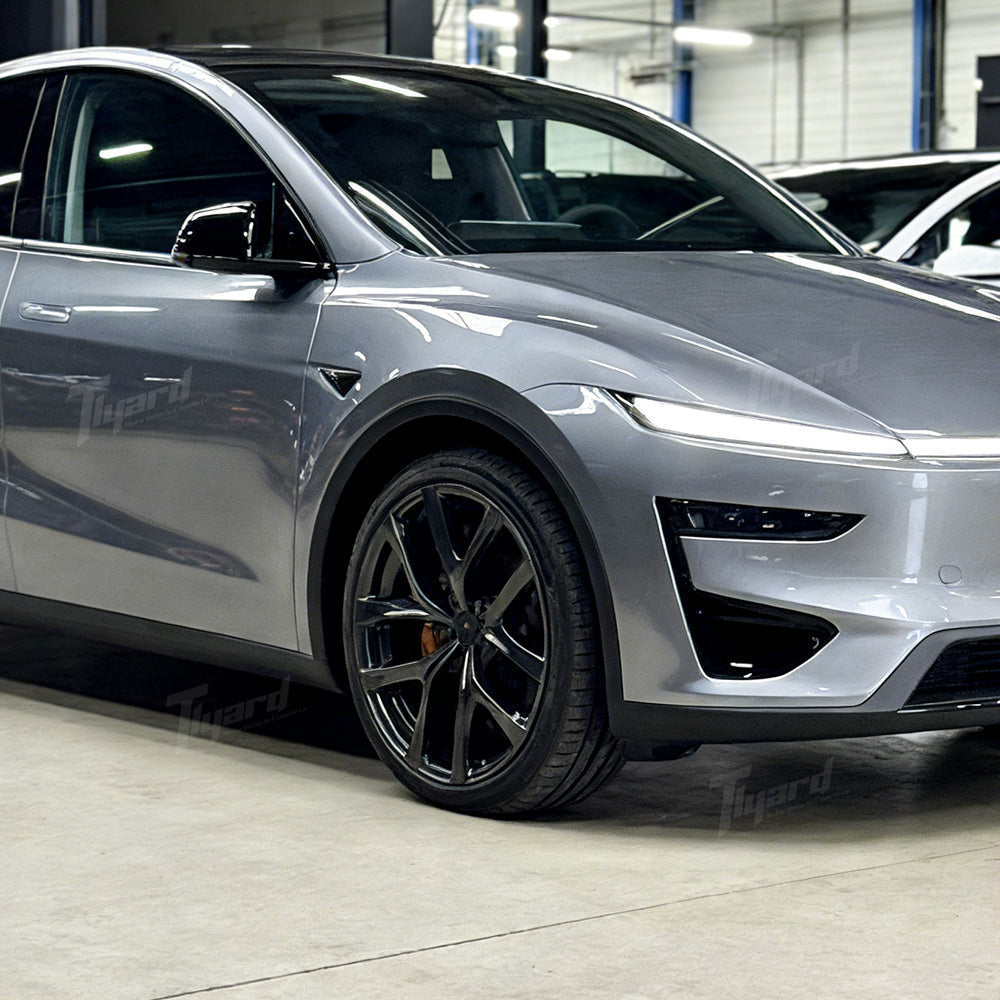

Tlyard Talon Custom Forged Wheels for Tesla Model X/ Model X Plaid/ Model S/ Model S Plaid - 19" 20" 21" 22" Set of 4

Unlike mass-produced cast wheels, the Tlyard Talon Series is precision-engineered from solid blocks of 6061-T6 aerospace-grade aluminum. This is not just an aesthetic upgrade; it is a structural revolution. Designed to be lighter, stronger, and more aggressive than factory wheels, the Talon series provides the "Flush Fitment" stance that Model X/S owners crave, while offering the structural integrity required to manage the instantaneous torque of the Plaid motors.

Technical Specifications

Series Name	Tlyard “Talon” Series
Construction	One-Piece (Monoblock) Forged
Material	6061-T6 Aerospace Aluminum Alloy
Vehicle Fitment	Tesla Model X/ Model X Plaid/ Model S/ Model S Plaid
Wheel Diameter	19″ / 20″/ 21" / 22" (Customizable)
PCD (Bolt Pattern)	5×120
Center Bore (CB)	64.1 mm
Lug Nut Spec	M14×1.5

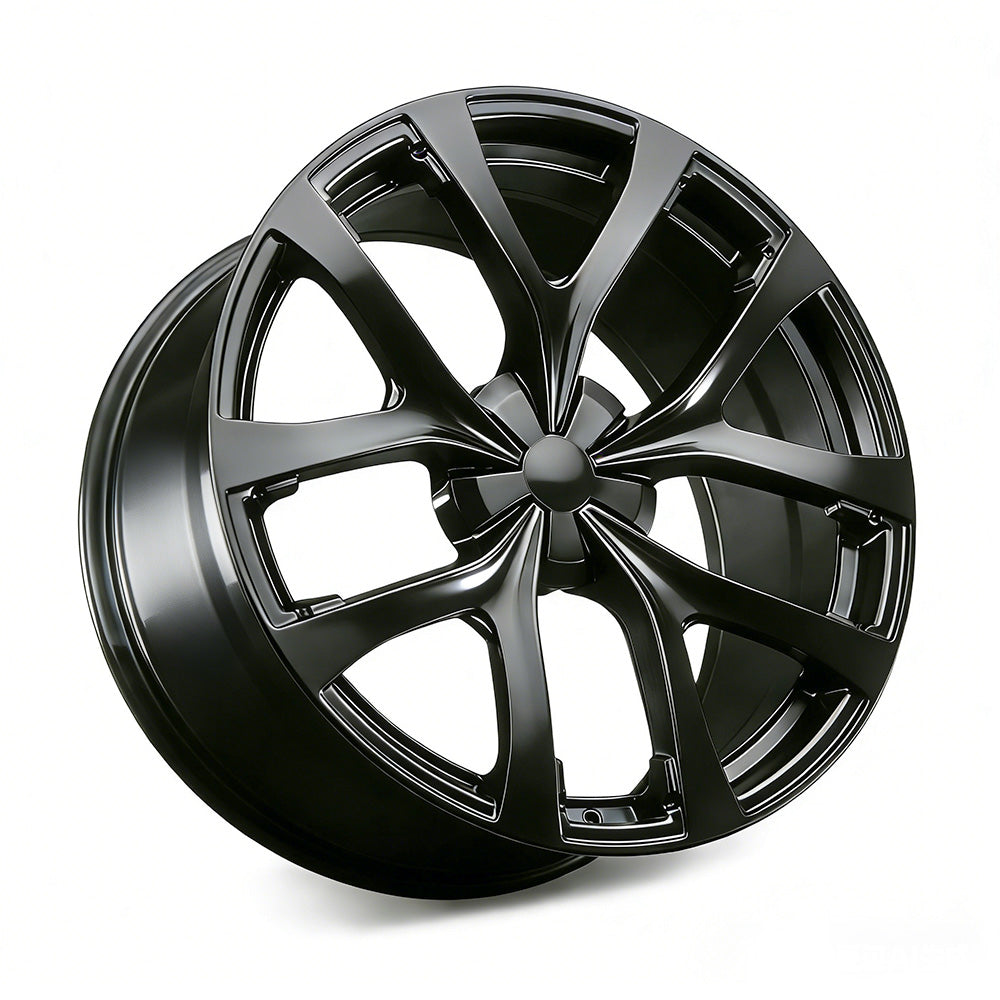

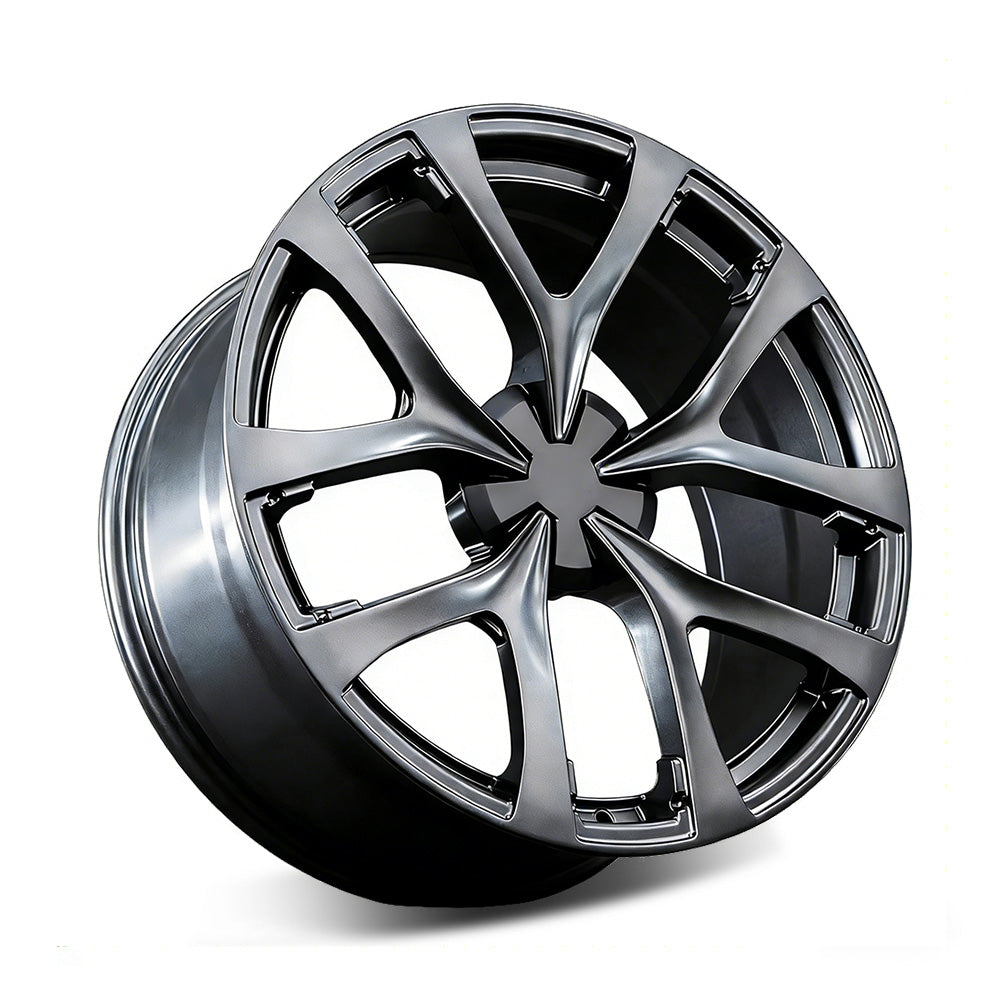

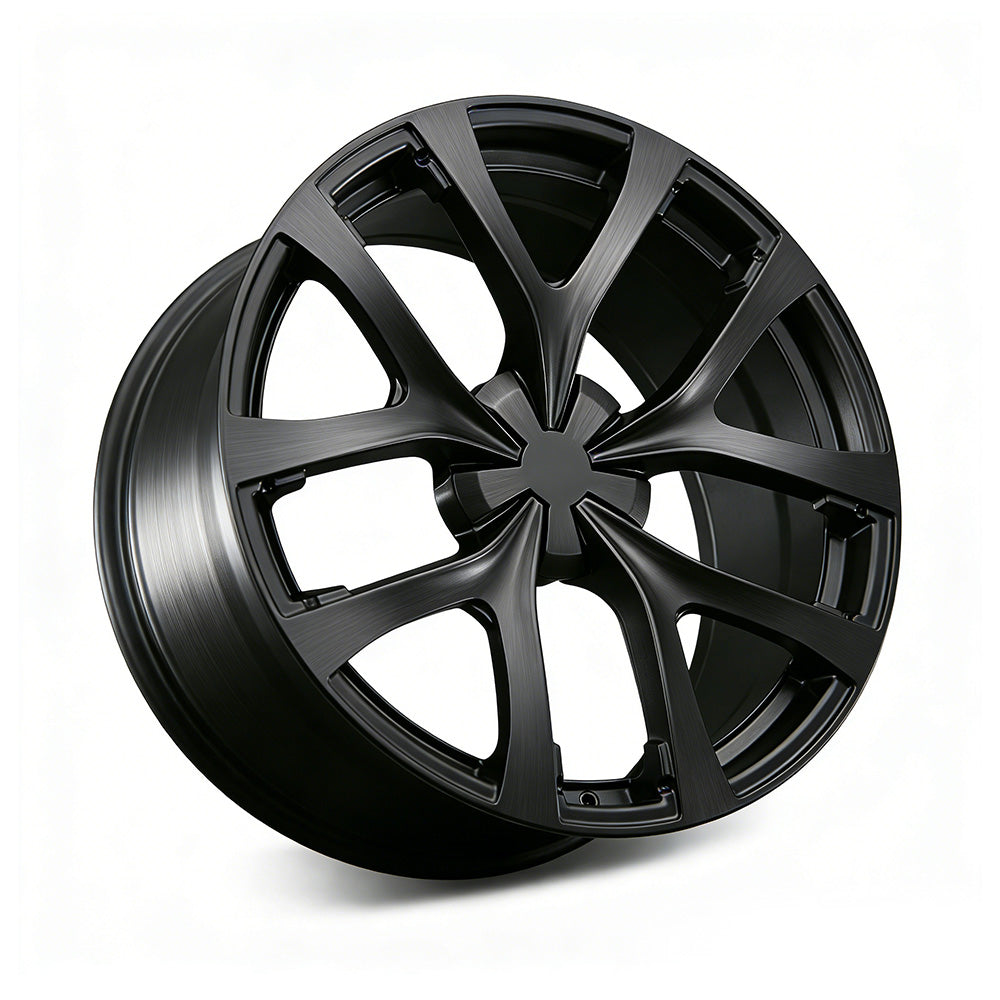

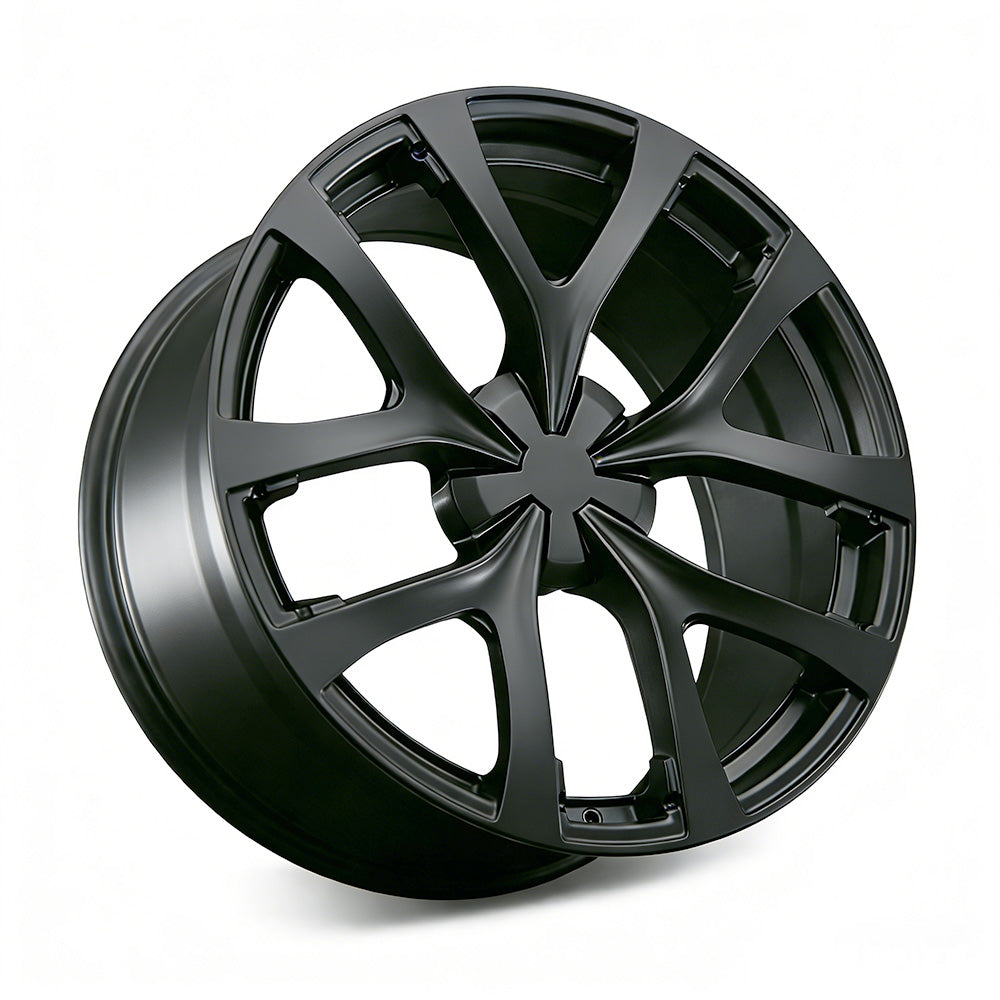

Finish Options	Satin Black / Space Gray / Gloss Black (Customizable)
Load Rating	950kg+/ 2,100 lbs



Detailed Size & Weight Matrix

Size	Width & Offset	Tire Recommendation	Estimated Weight (per piece)
19"	19x8.5" ET+35	245/45-19 (S) / 265/50-19 (X)	~12.75 kg (28.1 lbs)
20"	20x9.0" ET+35	245/40-20 (S) / 265/45-20 (X)	~13.5 kg (29.8 lbs)
21"	21x9.5" / 21x10.5" (Staggered)	265/35-21 (F) / 295/30-21 (R)	~14.0 kg (30.9 lbs)
22"	22x9.5" / 22x10.5" (Staggered)	265/35-22 (F) / 285/35-22 (R)	~15.2 kg (33.5 lbs)
23"	23x10.5" / 23x11.0" (Wide)	285/30-23 (F) / 305/30-23 (R)	~16.8 kg (37.0 lbs)



Plaid-Ready Engineering
Specifically reinforced to withstand the 1,020 HP output of Tesla’s Tri-Motor drivetrains. The Talon series ensures zero deformation under extreme acceleration, providing a stable and confident driving experience at any speed.

Aerospace-Grade Monoblock Forged Forged under 10,000 tons of pressure, our 6061-T6 aluminum construction creates a metal structure far denser than original factory cast wheels. This results in a wheel that is significantly more impact-resistant and durable.

Massive Weight Reduction Unsprung mass is the enemy of performance. By reducing wheel weight by up to 30% compared to factory variants, the Talon series improves suspension response, sharpens handling, and helps recover range lost to larger wheel diameters.

Bespoke Load Ratings 950kg+
Model X and S are among the heaviest EVs on the road. Every Talon wheel is rated for a minimum of 950kg+/ 2,100 lbs, ensuring maximum safety even under full passenger and cargo loads.

Frequently Asked Questions (FAQ)

Q1: What are the shipping options and delivery times?

Shipping Method & Cost	Destination	Estimated Time
Standard Sea Shipping (FREE)	Global	Approximately 30-35 days
Expedited Air Freight ($500 USD)	Global	Approximately 15 days after production is complete



Q2: How long does the custom production take?

Each Tlyard "Talon" wheel is custom-forged and precision CNC-machined to your exact specifications.The standard production lead time is approximately 20 days.

Q3: How much weight will I save by upgrading to Tlyard Forged wheels?

• Our forged wheels are typically 30% lighter than factory-cast wheels.
• For example, our 19-inch version starts at just 9.5KG, significantly reducing unsprung mass for sharper handling and improved battery efficiency.

Q4: Are forged wheels stronger than the original factory wheels?

• Yes, forged wheels offer superior durability.
• While most factory wheels are cast for mass production, our forging process creates a much denser and more refined metal structure.
• This results in significantly higher structural strength and impact resistance.

Q5: Do I need to buy new tires?

• If you choose the same diameter as your original wheels (e.g., 19" to 19"), you can reuse your existing tires.
• If you upgrade to a larger diameter (e.g., upgrading from 19" to 20" or 21"), you will need to purchase new tires matching the updated specifications.

Q6: Can I customize the style, size, or color?

• Absolutely, we offer comprehensive customization services.
• Our professional team[service@tlyard.com] will work closely with you to ensure the final product matches your exact preferences for your Tesla.
