TLS-02 Model Y / Y Juniper 19''-21'' Monoblock Custom Forged Wheels | Tlyard®

Elevate your Tesla Model Y or the new Model Y Juniper with the Tlyard® TLS-02, a masterpiece of modern wheel engineering. Inspired by the aggressive HF-7 mesh architecture, this wheel is designed for owners who demand a bold, high-tech aesthetic that stands out from the crowd.

Technical Specifications

Series Name	Tlyard® TLS-02
Construction	One-Piece (Monoblock) Forged
Material	Aerospace-Grade Aluminum Alloy
Vehicle Fitment	Tesla Model Y (RWD / Long Range / Performance)
Wheel Diameter	19″ / 20″ / 21″ (Customizable)
PCD (Bolt Pattern)	5×114.3
Center Bore (CB)	64.1 mm
Lug Nut Spec	M14×1.5

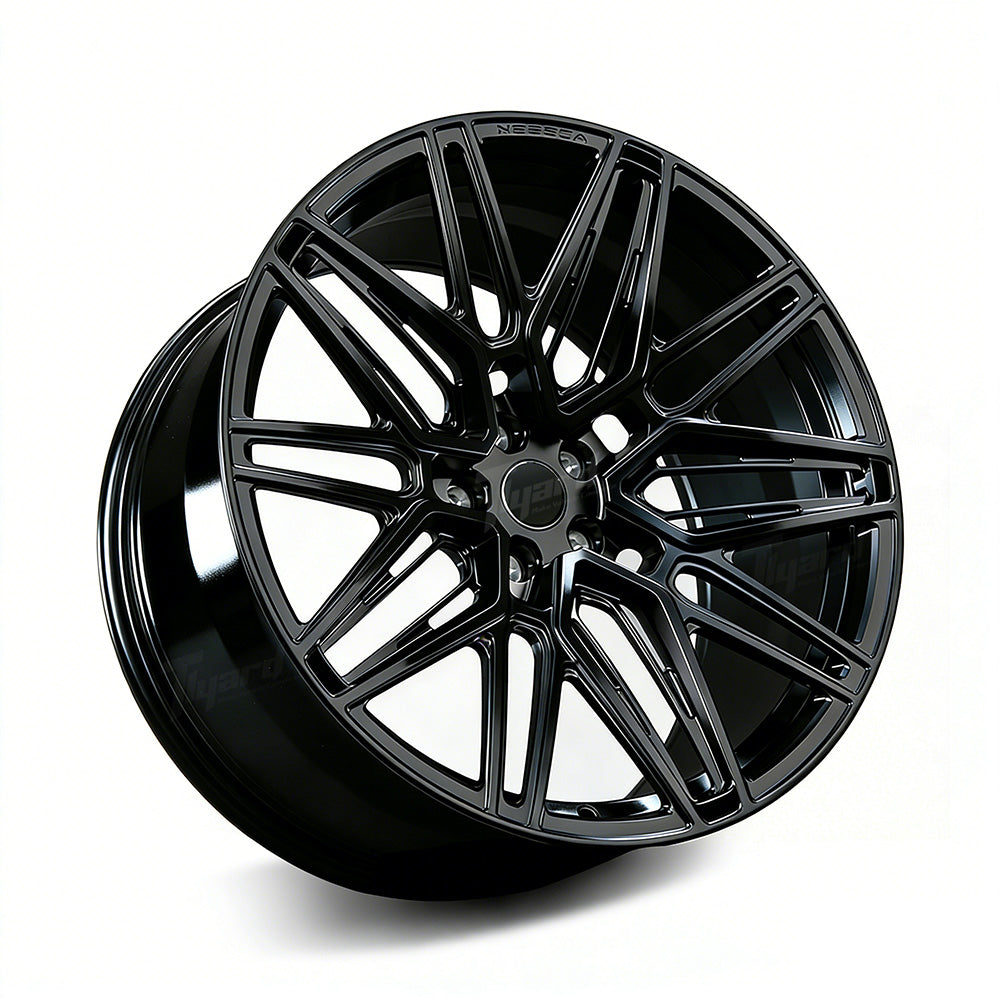

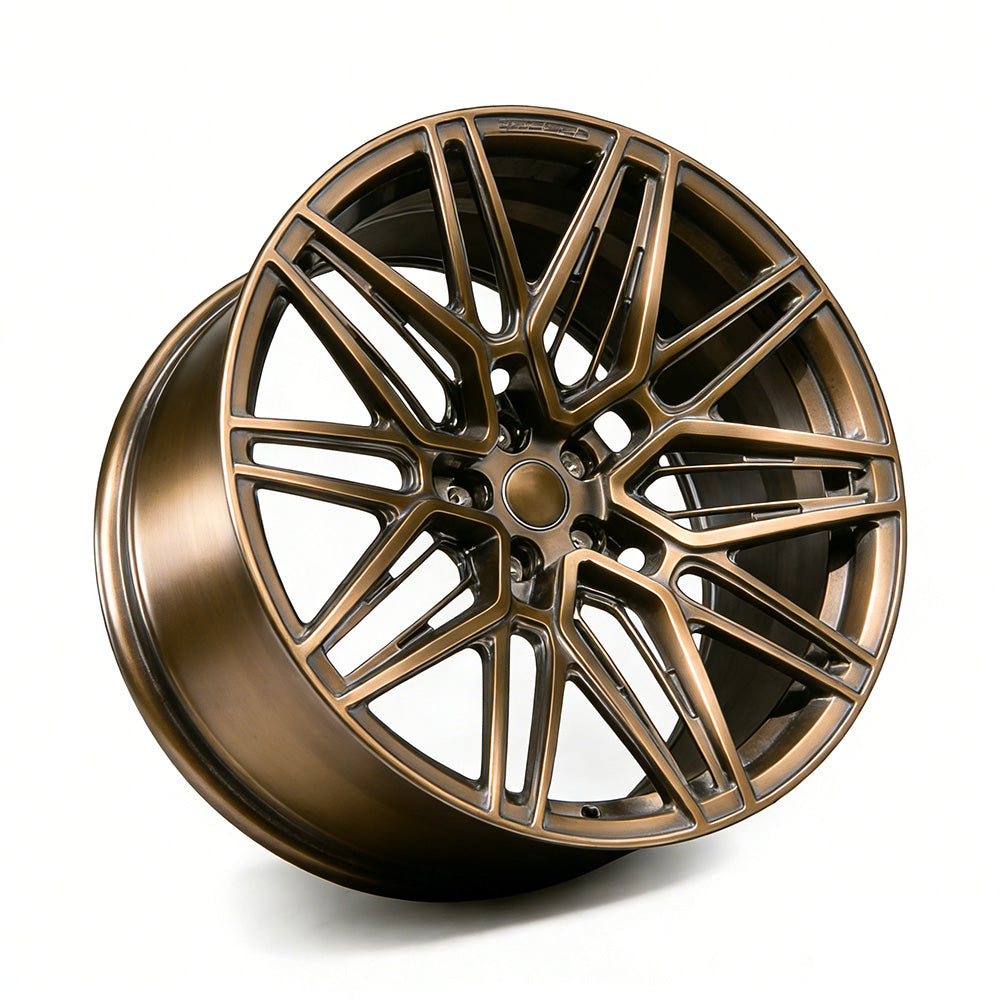

Finish Options	Gloss Black/Satin Gunmetal/Antique Bronze(Customizable)
Load Rating	900 kg/1984 lbs per wheel (Safety Certified)



Intricate HF-7 Inspired Mesh Design
A sophisticated, geometric Y-spoke pattern that adds a complex, racing-inspired visual layer to the Model Y’s minimalist side profile.

Ultra-Lightweight Monoblock Forging
Precision-crafted from a single piece of 6061-T6 aluminum, offering superior structural integrity and a much higher strength-to-weight ratio than cast or rotary-formed wheels.

Aggressive Deep Concave Stance
Specifically engineered with a dramatic concave face to give your Tesla a wider, more grounded "wide-body" appearance without the need for spacers.

Superior Brake Ventilation
The open mesh structure maximizes airflow to the braking system, ensuring consistent stopping power even during spirited driving.

Detailed Size & Weight Matrix

Size	Width & Offset	Recommended Tire	Weight (Est. Per Piece)
19″	19×9.5″ ET+35	255/45-19	~12.75 kg (28.1 lbs)
20″	20×10″ ET+40	255/40-20	~13.5 kg (29.8 lbs)
21″ (Staggered)	F: 21×9.5″ ET+32 R: 21×10.5″ ET+40	F: 255/35-21 R: 275/35-21	~14.0 kg (30.9 lbs)



Frequently Asked Questions (FAQ)

Q1: What are the shipping options and delivery times?

Shipping Method & Destination	Cost	Estimated Time
Standard Sea Shipping -Global	FREE	Approximately 30-35 days
Expedited Air Freight -Global	$500 USD	Approximately 15 days after production is complete



Q2: How long does the custom production take?

Each Tlyard Forged wheel is custom-forged and precision CNC-machined to your exact specifications.The standard production lead time is approximately 20-30 days, depending on the complexity of the design and specific finish requirements.

Q3: How much weight will I save by upgrading to Tlyard Forged wheels?

• For the same size and style, forged wheels are typically about 10%–25% lighter than cast wheels.

Q4: Are forged wheels stronger than the original factory wheels?

• Yes, forged wheels offer superior durability.
• While most factory wheels are cast for mass production, our forging process creates a much denser and more refined metal structure.
• This results in significantly higher structural strength and impact resistance.

Q5: Do I need to buy new tires?

• If you choose the same diameter as your original wheels (e.g., 19" to 19"), you can reuse your existing tires.
• If you upgrade to a larger diameter (e.g., upgrading from 19" to 20" or 21"), you will need to purchase new tires matching the updated specifications.

Q6: Can I customize the style, size, or color?

• Absolutely, we offer comprehensive customization services.
• Our professional team[service@tlyard.com] will work closely with you to ensure the final product matches your exact preferences for your Tesla.
