Tlyard V2L Discharge Device for Tesla 3/Y/X/S V2H Charging Station
Tlyard V2L Discharge Device for Tesla 3/Y/X/S V2H Charging Station
수령 가능 여부를 로드할 수 없습니다.
Discount Code
Discount Code
Easter Special 20% OFF Code: EGG20
Tlyard Installation Services
Tlyard Installation Services
설치 작업장 주소:
- 로버트 응우옌
- 이메일: Rnguyen213@gmail.com
- 전화: 469 634-0925
- 주소: 4621 Stone Oak Dr. Carrollton TX, 75010 USA ( →여기)
- 카메론 재판
- 이메일: cameron@cprteslarepair.com
- 전화: +1 7133064834
- 주소: 19430 Gladewater Drive, Tomball, Texas 77375 USA (→여기를 클릭)
- 데릭
- 이메일: steadfastdetail@gmail.com
- 전화: 0435 531 677
- 주소: Georges Hall, NSW 2198, Australia(→여기를 클릭)
- 웹사이트: https://steadfastdetailingsydney.com.au/
설치 도움이 필요한 경우 설치 작업장에 자세한 설치 비용을 문의하십시오. 이 워크샵은 설치 서비스만 제공하며 제품의 판매 후 문제에 대해 책임지지 않습니다. 제품에 문제가 있는 경우 지원 서비스(service@tlyard.com) 또는 온라인 채팅에 문의하세요.
Product Warranty
Product Warranty
For all products purchased on the Tlyard official website, Tlyard offers a risk-free, 1-year quality guarantee.
이 제품을 공유하세요
Product Information
Product Description
Product Description
The Tlyard V2L Discharge Device is designed specifically for Tesla Model 3, Model Y, Model X, and Model S. This innovative charging station allows users to not only recharge their vehicles but also utilize them as a power source. With seamless integration, it empowers Tesla owners to harness their vehicle's battery for various applications, enhancing versatility and convenience.

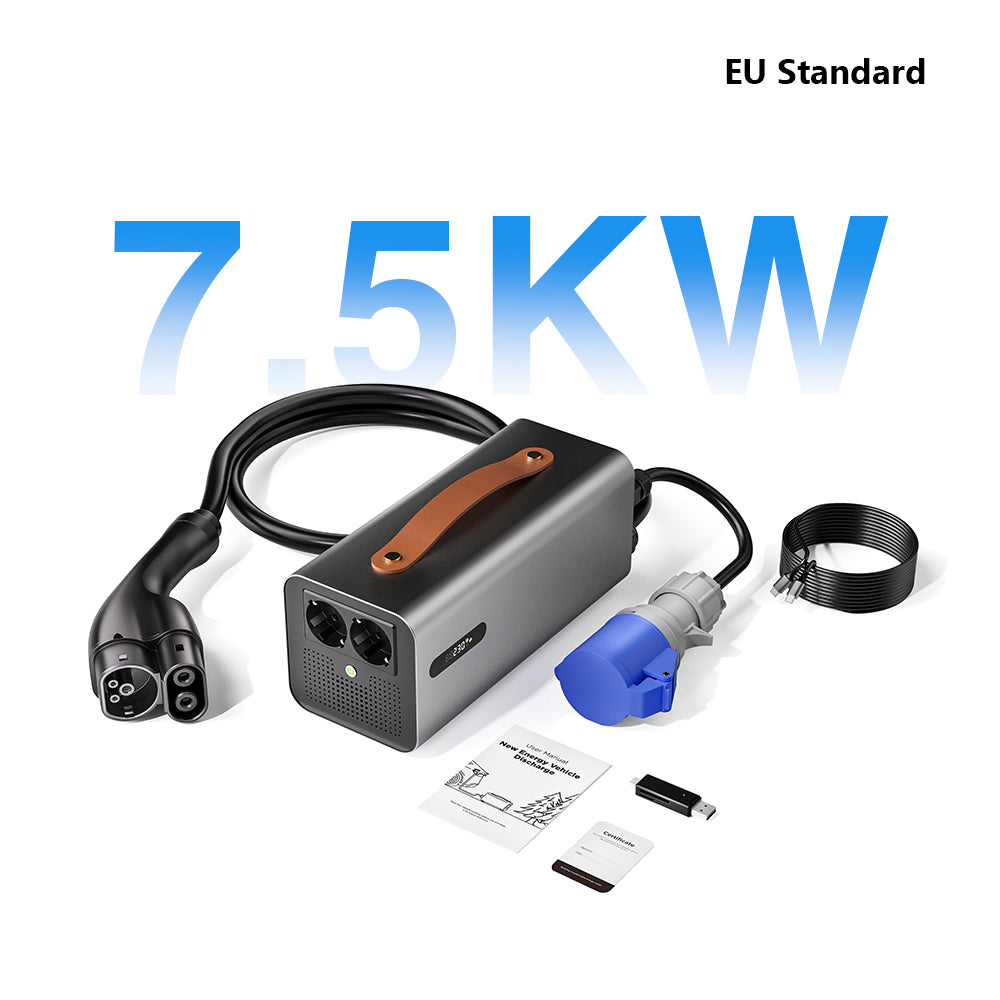

EU Standard
Model Compatibility |
All Tesla Models (excluding Cybertruck) |
Chassis Material |
Aluminum + Plastic |
Gun Standard |
European CCS2 |
Input Voltage |
DC 320-520V |
Output Voltage |
AC 220-240V |
Output Interface |
European Standard Socket * 2 |
Single Port Current |
16A MAX |
Total Output Current |
23A MAX |
Maximum Output Power |
5KW MAX |
Size Dimensions |
296*125*125mm |
Cable Length |
2M |
Product Weight |
Approximately 4KG |
Internal Battery Capacity |
12V 2.55AH |
Packaging Size |
410*210*250mm |
Packaging Weight |
Approximately 5KG |
Stop Discharge Capacity |
Vehicle SOC 20% stop |
Display |
Output Voltage |
Operating Temperature |
-10°C to 40°C |
Waterproof Rating |
None |

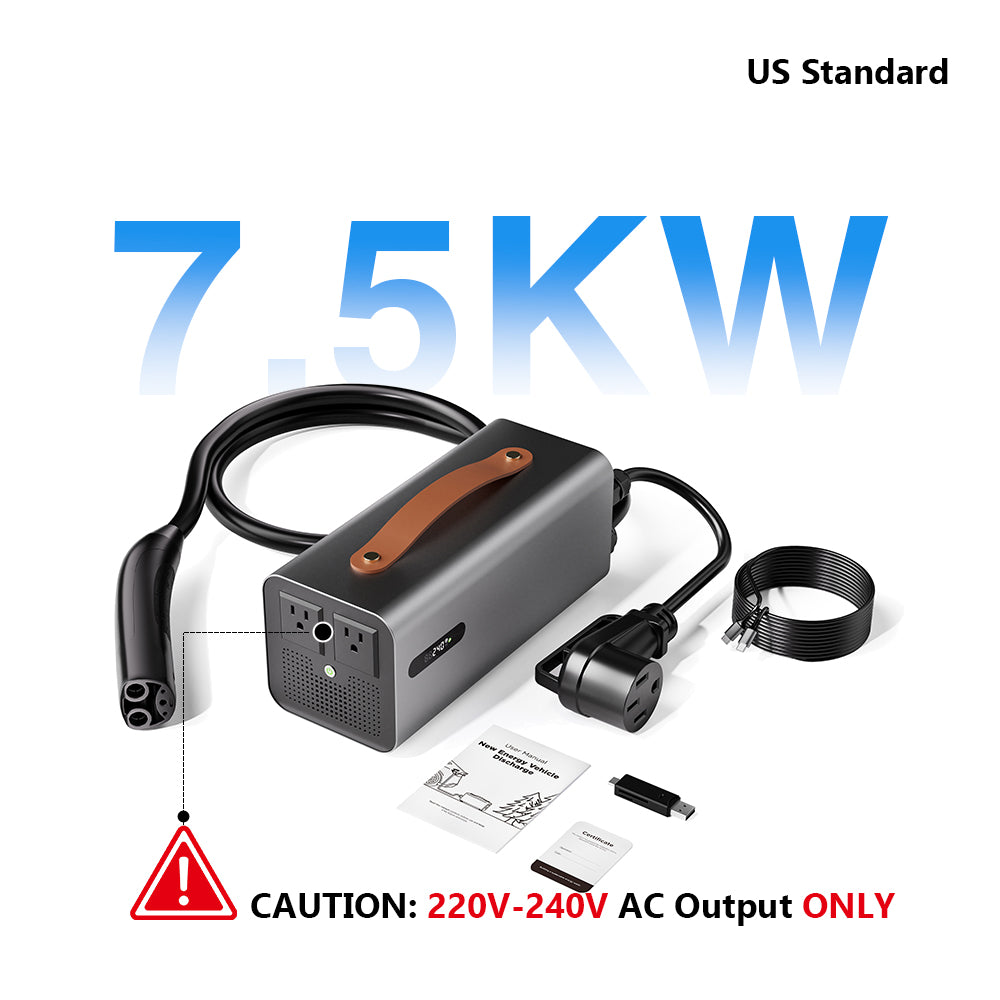

US Standard
Model Compatibility |
All Tesla Models (excluding Cybertruck) |
Chassis Material |
Aluminum + Plastic |
Gun Standard |
American NACS |
Input Voltage |
DC 300-500V |
Output Voltage |
AC 110-120V |
Output Interface |
American Socket *2 (5-15R) |
Single Port Current |
15A MAX |
Total Output Current |
30A MAX |
Maximum Output Power |
3.5KW MAX |
Size Dimensions |
296*125*125mm |
Cable Length |
2M |
Product Weight |
Approximately 4KG |
Internal Battery Capacity |
12V 2.55AH |
Packaging Size |
410*210*250mm |
Packaging Weight |
Approximately 5KG |
Stop Discharge Capacity |
Vehicle SOC 20% stop |
Display |
Output Voltage |
Operating Temperature |
-10°C to 40°C |
Waterproof Rating |
None |
- High Power Output: Charges quickly with up to 3.5KW, minimizing downtime for Tesla drivers.
- Compatibility: Works with all Tesla models (except the Cybertruck), making it a versatile choice for Tesla owners.
- User-Friendly Design: Simple plug-in with the American NACS socket and an informative display showing output voltage.
- Compact and Portable: Lightweight and compact, easy to install and move as needed.
- Safety Features: Stops charging when the vehicle’s battery capacity (SOC) reaches 20%, preventing over-discharge.
Q&A
About Tesla Warranty
-
Is this product safe for my vehicle?
This product is equipped with 8 protective features, including fuse protection, short circuit protection, overload protection, over-temperature protection, over-voltage protection, and low battery protection. We can ensure that this product will not damage your vehicle, so you can feel completely assured. -
Will using this product affect my Tesla warranty?
Using this product will not impact the warranty.
About Battery Damage
-
Is there a risk of damaging the battery?
The battery will not get damaged.
Reasons for Activating Camp Mode
-
Why must Camp Mode be activated?
Activating Camp Mode ensures that the battery maintains a closed relay continuously, allowing for long-duration discharge.
What to Do if Tesla Software Locks This Product?
-
Can Tesla lock this product?
This product operates on a charging protocol, and when in use, the vehicle's control interface will display "Charging." Tesla cannot lock this product. -
Is this product compliant with local standards?
This product's communication protocol complies with local standards, including GB/T 15118 and GB/T 70121 charging protocols. When using this product, the backend records it as a charging activity, thus it will not affect your warranty or locking. -
Can this product be updated?
Yes, this product has a system upgrade feature and comes with a standard memory card. If future adaptations are needed, new firmware can be sent via email for users to upgrade the system themselves.
